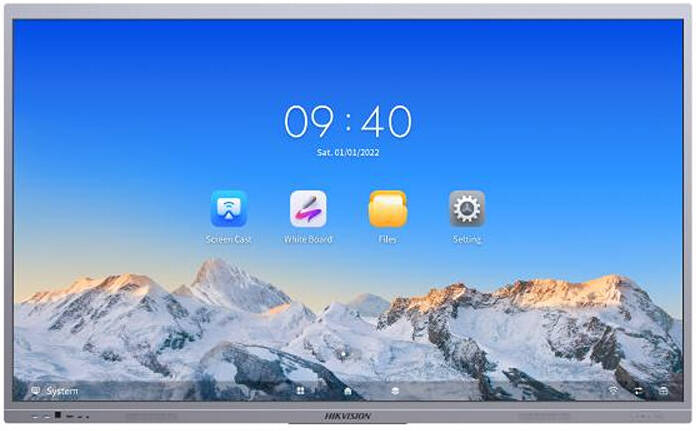

75-inch 4K Interactive Display
Key Features
- UHD 4K display with resolution of 3840 × 2160.
- Anti-glare and anti-blocking design to ensure smooth interaction.
- Dual systems of Android and Windows (Optional) saving cost and easy to use, video conference software are recommonded to run under Windows system.
- Quick response, at most 45-points touch control and smooth writing experience.
- Built-in network switch chip saves a network switch.
- All-in-one design with tempered glass and intelligent temperature control, making it environmental-friendly and safety-guaranteed, support blue light protection.
Specification
| Panel | Glass Thickness: 3.2mm |
| Panel | Glass Bonding Method: Zero Lamination |
| Display | Screen Size: 75 inch |
| Display | Backlight: DLED |
| Display | Pixel Pitch: 0.14325(H) × 0.42975(V) mm |
| Display | Resolution: 3840 × 2160 @60 Hz |
| Display | Brightness: 400 cd/m² (Typ.) |
| Display | Color Depth: 10bit |
| Display | Contrast Ratio: 5000:1 |
| Display | Response Time: 6 ms |
| Display | Color Gamut: 72% NTSC (CIE1931) (Typ.) |
| Display | Refresh Rate: 60 Hz |
| Display | Viewing Angle: 178°(H)/178°(V) |
| Display | Surface Haze: 25% Haze |
| Display | Display Area: 1650.24mm x 928.26mm |
| Display | Working Duration: 7*16H |
| Optical | Aspect Ratio: 16:9 |
| Optical | Touch Type: Infrared Touch Screen |
| Optical | Touch Point: 45 point multi-touch |
| Optical | Touch Response Time: <6 ms |
| Optical | Touch Precision: ±1 mm (≥90% touching area) |
| Built-In System | Operation System: Android 13.0 |
| Built-In System | Processor: Quad-core Cortex-A76 × 4 (2.4 GHz) and quad-core Cortex-A55 × 4 (1.8 GHz) |
| Built-In System | Memory: 8 GB |
| Built-In System | Built-In Storage: 128 GB |
| Built-In System | Panel Type: VA |
| Built-In System | HDCP Version: 2.3 |
| Built-In System | Touch Resolution: 32768 x 32768 |
| Built-In System | Processing Performance: Display Color: 1.07G |
| Internal Function | Loudspeaker: Built-in 2 × 15 W + 25W loudspeaker |
| Internal Function | Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1 |
| Interface | Video & Audio Input: HDMI In (HDMI 2.0) × 3, VGA In × 1, DP In (DP 1.2) × 1, Audio In × 1 |
| Interface | Video & Audio Output: HDMI Out (HDMI 2.0) × 1, Audio Out × 1, SPDIF Out × 1 |
| Interface | Control Interface: TOUCH-USB 3.0 × 3, RS232 × 1 |
| Interface | Network Interface: LAN (1000 Mbps) × 2, WIFI AP&Station, 2.4G/5G, IEEE 802.11 a/b/g/n/ac 2 × 2 MIMO (2.4 GHz and 5 GHz), authentication protocols: WEP, WPA, WPA2, PSK, and 802.1X EAP |
| Interface | Data Transmission Interface: USB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W) |
| Power | Standby Consumption: ≤ 0.5 W |
| Power | Average Consumption: < 150W |
| General | VESA: 800 mm × 400 mm (4 × M8-25 mm) |
| General | Power Supply: 100 to 240 VAC, 50/60 Hz |
| General | Product Dimensions: 1713.2 mm × 1019 mm × 82.5 mm |
| Accessory | Wall mount bracket, hook, user manual, touch writing pen, packing list, 3M touch USB cable, 3M HDMI cable (2.0), 1.5m power cable (European standard), Bluetooth remote control |
| Package Dimensions | 1937 mm × 264 mm × 1222 mm |
| Weight | Net Weight: 50.23 kg |
| Weight | Gross Weight: 66.62 kg |
| NFC | Supports screen mirroring by Android phones |
| Working Environment | Working Temperature: 0 °C to 40 °C (32 °F to 104°F) |
| Working Environment | Working Humidity: 10%~90% RH |
