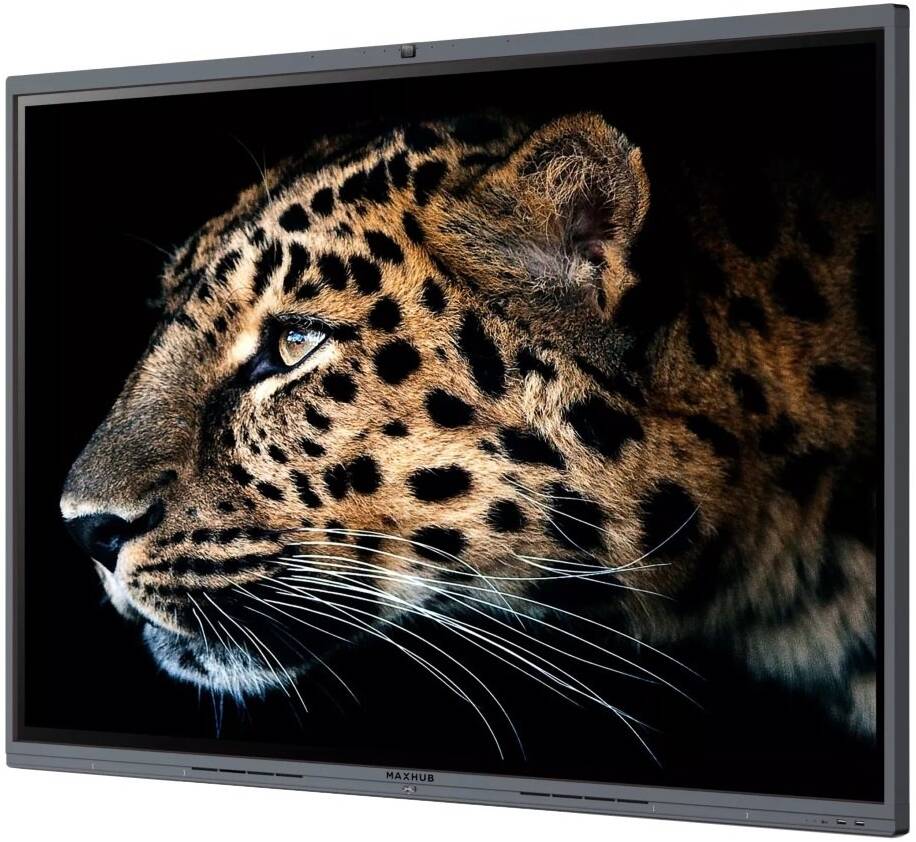

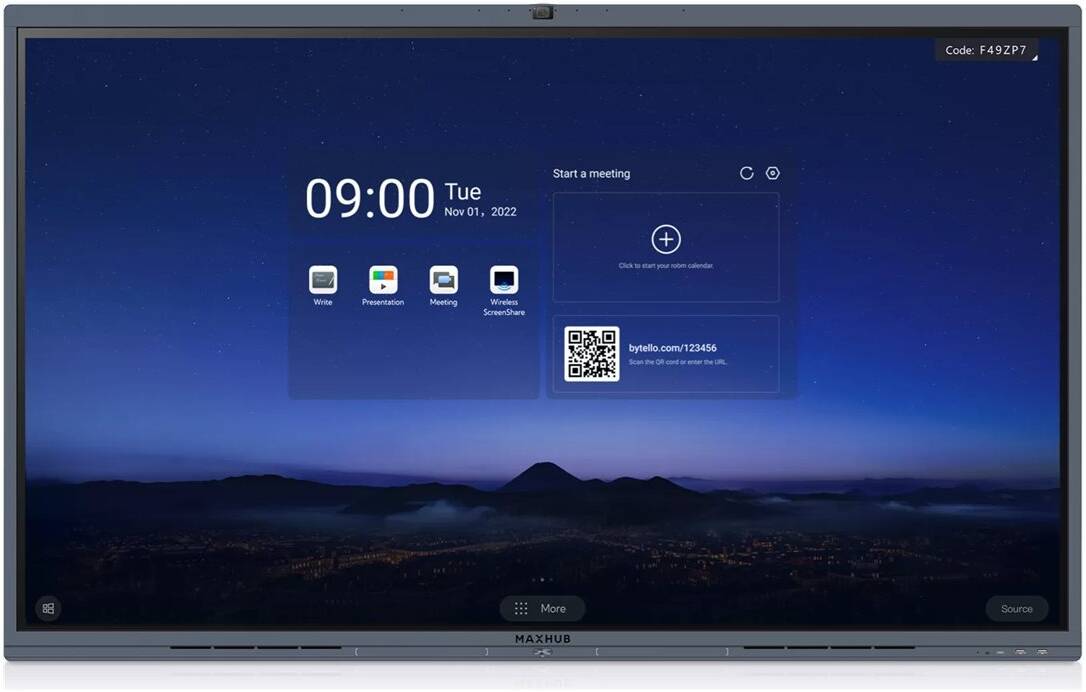

MAXHUB V6 Classic Series Interactive Display, 86" IPS Display, 4K UHD Resolution, 60Hz Refresh Rate, 8ms Response Time, 16/7 Operation Hour, IR Touch, Up to 20 Touch Points, Black | C8630
MAXHUB V6 Classic Series Interactive Display, 86" IPS Display, 4K UHD Resolution, 60Hz Refresh Rate, 8ms Response Time, 16/7 Operation Hour, IR Touch, Up to 20 Touch Points, Black | C8630
Couldn't load pickup availability
C8630
A 86-inch interactive flat panel display designed for collaborative work and video conferencing. It offers a range of features to enhance productivity and communication.
Specifications
| Diagonal Size (inch) | 86 |
| Backlight | Direct-lit LED |
| Panel Technology | VA |
| Aspect Ratio | 16:9 |
| Resolution | 3840 x 2160 |
| Response Time | 8 ms |
| Brightness (typ) | 350 cd/m² |
| Contrast Ratio | 1200:1 |
| Viewing Angle | 178°/178° |
| Color Gamut (typ) | 90% NTSC |
| Display Orientation | Landscape |
| Operation | |
| Operation Hour | 16/7 |
| Refresh Rate | 60 Hz |
| Dimensions & Weight | |
| Product Dimensions (W x H x D) | 1957.1 x 1160.1 x 100.2 mm |
| Shipping Dimensions (W x H x D) | 2110 x 1283 x 225 mm |
| Net Weight (kg/lb) | 59.75 kg / 131.73 lb |
| Gross Weight (kg/lb) | 77 kg / 169.76 lb |
| Wall Mount | 800x600 mm / 31.50x23.62 inch |
| Screws for VESA | M8x25 mm / M8x0.99 inch |
| Power | |
| Power Supply | AC 100-240 V, 50/60 Hz |
| Max Power Consumption | 400 W |
| Standby | ≤ 0.5 W |
| Environment | |
| Operating Temperature | 0°C~40°C |
| Operating Humidity | 10%~90% RH |
| Storage Temperature | -20°C~60°C |
| Storage Humidity | 10%~90% RH |
| Touch System | IR Touch |
| Max Touch Points | 20 |
| Object Recognition Range | ≥ 2 mm |
| Accuracy | ± 1 mm |
| Glass | Zero parallax, 3 mm Anti-Glare, Antibacterial |
| Supported Operating Systems | Windows10/8/7/XP, Android, Linux, Mac OS X, Chrome OS |
| Connectivity | |
| Input | HDMI In x1, USB 2.0 x1, USB 3.0 x2, TOUCH 2.0 x1, USB Type-C x2 |
| Audio | Audio Out x1 |
| Control | RS232 x1 |
| OPS Slot | Yes, 3840 x 2160 @60 fps |
| OPS Module | MT61, SI06 |
| Wi-Fi Module | Yes |
| Camera/Audio/Microphone | |
| Built-in Camera | Yes, Single Camera, 48 MP |
| Speaker Output Power | 2.1 channel, 2 x 10 W + 20 W |
| Microphone Array | 8x far-field, beam-forming microphone - max 8 m range |
| What's In The Box | Power Cord, Wi-Fi Adapter, 2 x Passive Stylus, Wall Mount, Type-C Cable (1.8 m / 70.9 inch) |
