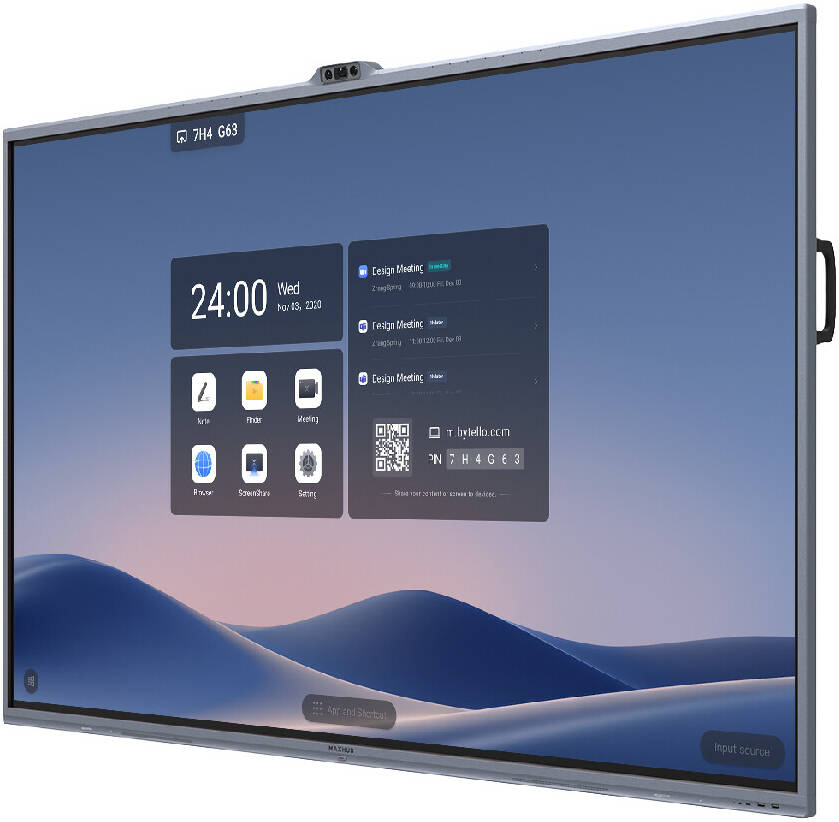

MAXHUB XBoard V7 Series Interactive Display, 55" ADS Display, 4K UHD Resolution, 50 Points Touch Points, Infrared Recognition Technology, 60Hz Refresh Rate, 8ms Response Time, Black | V5550
MAXHUB XBoard V7 Series Interactive Display, 55" ADS Display, 4K UHD Resolution, 50 Points Touch Points, Infrared Recognition Technology, 60Hz Refresh Rate, 8ms Response Time, Black | V5550
Couldn't load pickup availability
MAXHUB XBoard V7 Series Interactive Display, 55" ADS Display, 4K UHD Resolution, 50 Points Touch Points, Infrared Recognition Technology, 60Hz Refresh Rate, 8ms Response Time, Black | V5550
Specifications
| Display | |
| Screen Size (inch) | 55 |
| Aspect Ratio | 16:9 |
| Panel | ADS |
| Backlight | DLED |
| Brightness (Typ.) | 350 nits |
| Glass | Zero parallax, 3mm thickness, 9H tempered |
| Surface Technology | 25% haze, Non-glare technology |
| Resolution | 3840 × 2160 |
| Refresh Rate | 60 Hz |
| Contrast Ratio | 1200:1 (typ.) |
| Viewing Angle (H × V) | 178° / 178° |
| Color Gamut | 90% NTSC |
| Display Orientation | Landscape |
| Response Time | 8 ms |
| Life Time | >50,000 hours |
| Operation Hours (Hours/Day) | 16 / 7 |
| Display Color | 1.07B (10 bit) |
| Color Accuracy | Delta E ≤ 1.5 |
| Sensor | Ambient light & Ultrasonic detection sensor |
| Touch System | |
| Touch Technology | Intelligent Touchscreen (infrared recognition) |
| Touch Points | 50 points touch |
| Object Recognition Range | ≥1.5 mm |
| Accuracy | ±0.5 mm |
| Response Time | ≤2.5 ms |
| Writing Height | ≤1 mm |
| System (Touch Return) | Win 7/8/10/11, Android, Linux, Mac OS X, Chrome OS |
| Feature | Windows Ink, Direct Annotation, Palm Rejection, Sharp Erase, Multi-input, Handwriting Recognition (all models) |
| Connectivity | |
| HDMI IN | × 2 |
| USB 2.0 | × 1 |
| USB 3.0 | × 2 |
| USB Type-C | × 1 |
| TOUCH 2.0 | × 1 |
| AUDIO IN | × 1 |
| AUDIO OUT | × 1 |
| RS232 | × 1 |
| RJ45 IN | × 1 |
| PC Module Slot | Module slot × 1 |
| Wi-Fi Slot | Module slot × 1 |
| Wi-Fi | Wi-Fi 6 (802.11ax, 2.4GHz/5GHz) |
| Bluetooth | 5.2 |
| Camera | |
| Quantity | 3 |
| Resolution | 50 MP + 50 MP + 50 MP (Panorama + 2x Telephoto) |
| Zoom | 2x optical, 5x digital |
| Field of View | 99° diagonal, 86° horizontal, 69° vertical |
| Position | Built-in ejection |
| Feature | Personalized presets, Auto framing, Speaker tracking, Multiple-speaker tracking, Intelligent focus (all models) |
| Audio | |
| Sound Channel | 2.1 |
| Speaker Power | 2×10W + 20W |
| Microphone Quantity | 16-mic array |
| Pick-up Angle | 180° |
| Pick-up Range | 0–15 m |
| Mic Features | Intelligent audio fence, AI spatial sound, AEC, ANC, AGC (all models) |
| System Features | |
| System OS | MAXHUB OS 7.0 powered by Windows |
| Screen Share | MAXHUB Share, BYOM / Miracast / Airplay / Chromecast / P2P |
| Device Management | MAXHUB Pivot |
| Protocol Control | RS232 / IP control, integration with Crestron / Extron / Q-sys |
| Special Features | Microsoft Intune |
| Certification | |
| Safety | IEC 62368-1 |
| EMC | Class B |
| Environment | Energy Star |
| IP Rating | IP5X design standards |
