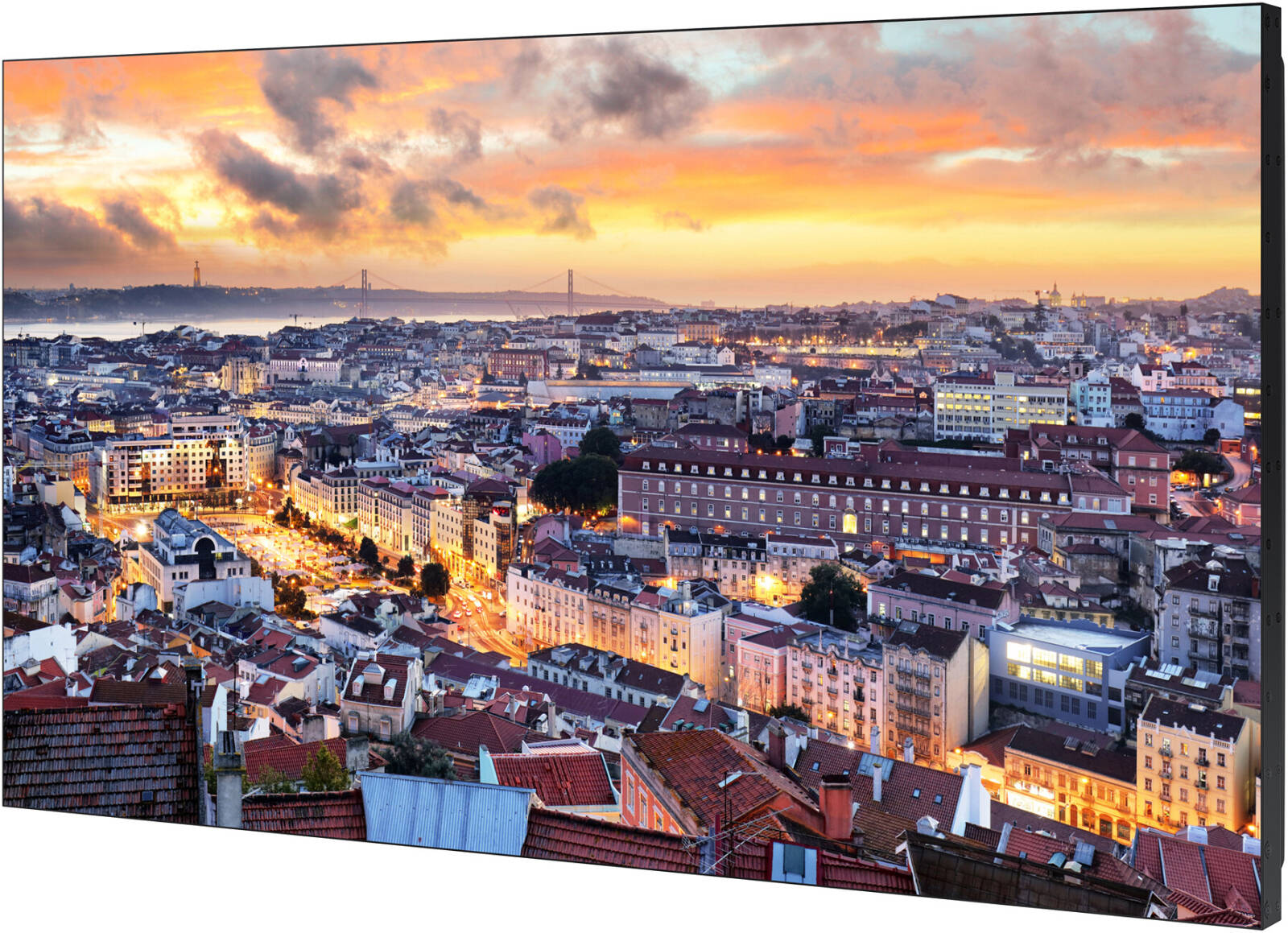

VHC-E Series
Always-on, space-saving solution with extreme narrow bezels
Samsung's VHC-E series provides an immersive, dependable 24/7 viewing experience. The display’s slim depth and 700 nit brightness ensures highly visible images and legible messages in a wide range of locations from shopping malls and lobbies to meeting rooms, control rooms, and more.
Specifications
| Design | |
| Contrast Ratio (Dynamic) | 45,000:1 |
| Orientation | Landscape / Portrait |
| H-Scanning Frequency | 62.7kHz ~ 72.3kHz |
| V-Scanning Frequency | 57Hz ~ 63Hz |
| Maximum Pixel Frequency | 82MHz |
| Connectivity | |
| RGB Input | DVI-D, Display Port 1.2 |
| Video Input | HDMI 2.0 (2) |
| HDCP Input | HDCP 2.2 |
| Audio Input | Stereo mini Jack |
| USB Input | Only F/W upgrade |
| RGB Output | DP1.2 (Loop-out) |
| Audio Output | Stereo mini Jack |
| External Control | RS232C (in/out), RJ45 |
| External Sensor | Detachable type (IR) |
| Power | |
| Power Supply | AC 100 - 240 V, 50/60 Hz |
| Sleep Mode | Less than 0.5W |
| Off Mode | Less than 0.5W |
| Power Consumption (Max) | 242W |
| Power Consumption (Typical) | 145W |
| Power Consumption (BTU, Max) | 825 |
| Type | Internal |
| Features | |
| Key | Ultra Narrow Bezel |
| Special Features | ACM Support, Auto Source Switching, Haze 25%, Temperature Sensor, RS232C/RJ45 MDC, Video Wall, Smart F/W update, IP5X rated |
| Accessories | |
| Included in Box | Quick Setup Guide, Warranty Card, DP cable, stereo to DB9 cable, Power Cord, Remote Controller, Batteries, External IR |
| Optional Wall Mount Kit | WMN-55VD |
| Mechanical Specs | |
| VESA Mount | 600 x 400 mm |
| Media Player Option | Signage player box |
| Set Dimension (mm) | 1213.5 x 684.3 x 73.1 |
| Package Dimension (mm) | 1398 x 844 x 257 |
| Set Weight (kg) | 21.2 |
| Package Weight (kg) | 28.8 |
| Bezel Width (mm) | 2.3mm (U/L), 1.2mm (R/B) |
| Certification | |
| Safety | 60950-1 |
| EMC | Class A |
| IP Rating | IP5X |
| Panel | |
| Pixel Pitch (mm) | 0.63mm (H) x 0.63mm (V) |
| Response Time (G-to-G) | 8ms |
| Diagonal Size Class | 55" |
| Diagonal Size Measured | 54.6" / 138.7 cm |
| Type | IPS |
| Resolution | 1920 x 1080 |
| Active Display Area (mm) | 1209.6 x 680.4 mm |
| Brightness | Max 500 cd/m² |
| Contrast Ratio | 1,200:1 |
| Viewing Angle (H/V) | 178/178 |
| Display Colors | 8 bit - 16.7M |
| Color Gamut | 72% |
| Operation Hour | 24/7 |
| Haze | 25% |
| Operation | |
| Operating Temperature | 0°C ~ 40°C |
| Humidity | 10% ~ 80% |
